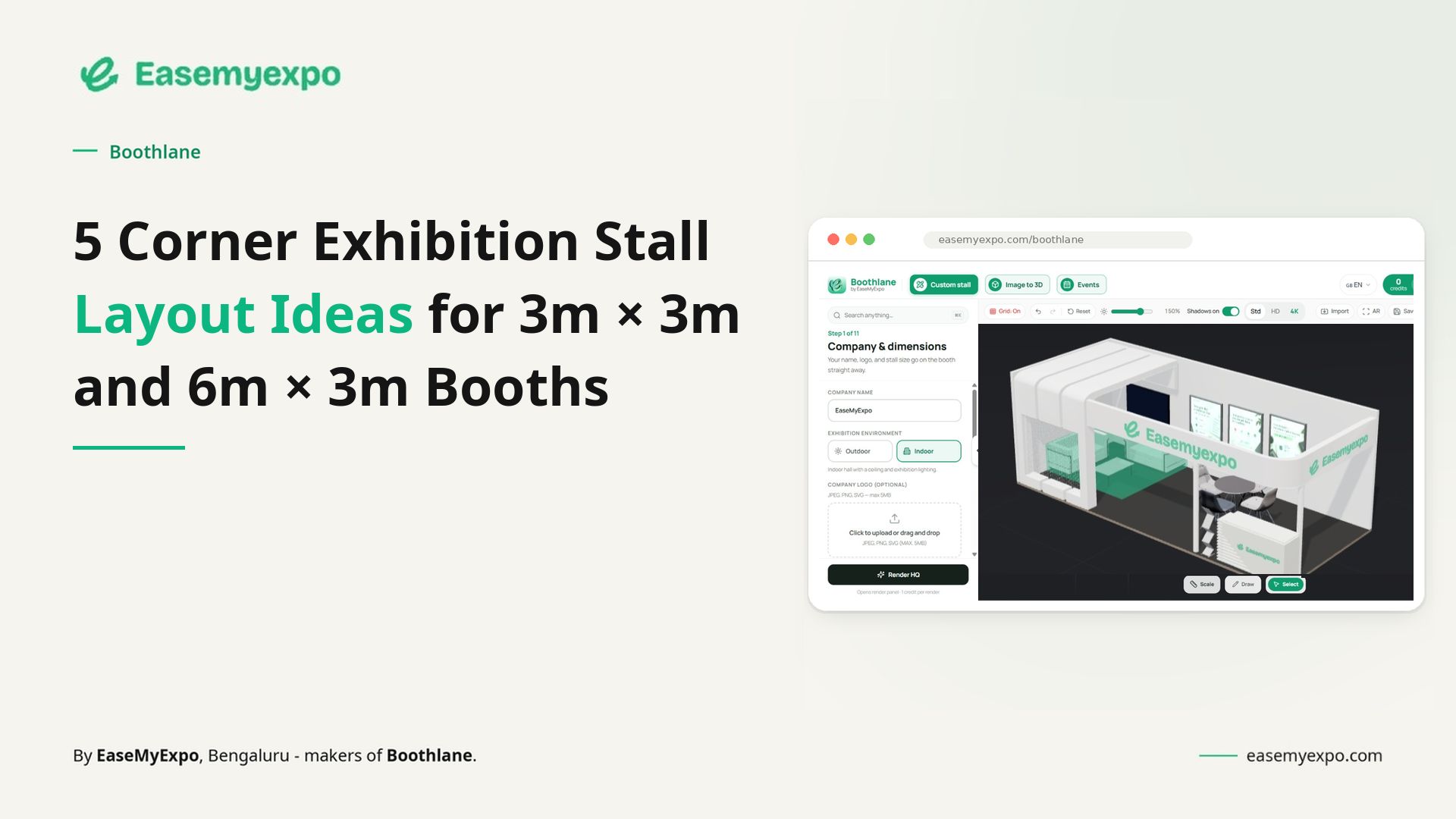

5 Corner Exhibition Stall Layout Ideas for 3m × 3m and 6m × 3m Booths

A booth layout is not good because every square metre is filled. It is good when visitors can understand where to look, where to stand and where to move without being told.

A corner exhibition stall has two open sides, so the design needs to work from both approaches. Clear sightlines, an open corner and balanced branding are especially important.

Boothlane by EaseMyExpo lets exhibition teams create, edit and review corner stall concepts in 3D before taking the design forward for fabrication.

Quick Answer

What is the best layout for a corner exhibition booth?

The best corner booth layout keeps both open sides clear, places the main activity where it is visible from either aisle and keeps storage or low-priority elements away from the open corner. Review the layout in 3D before approval.

What Is a Corner Exhibition Stall?

A corner exhibition stall is a booth with two adjacent open aisle sides, usually positioned at the end of a row.

Because visitors can approach from two directions, the design should prioritise visibility, an open corner and clear movement between both aisle sides.

Exact dimensions, height limits and structural rules depend on the exhibition organiser.

What Makes a Good Corner Booth Layout?

A good corner booth layout works from both aisle directions and the diagonal corner view. Visitors should immediately understand where to enter and what to look at.

Keep the open corner clear, avoid blocking sightlines and use only the furniture and displays the booth actually needs.

A corner exhibition stall is mainly a visibility-and-movement problem. The footprint matters, but the more useful question is how a visitor experiences the stand from the aisle. In this format, two-direction visibility, an open corner and a layout that works from both aisles decide whether the booth feels clear or confused.

Boothlane by EaseMyExpo lets exhibition teams create, edit and review 3D stall concepts in the browser. The aim is not to replace technical design or fabrication. It is to make early decisions visible enough that marketing, design and fabrication teams can discuss the same thing before the build starts.

Quick Answer

What is the best layout for a corner exhibition booth?

The best layout depends on the main visitor action: product discovery, demonstration, short meetings or lead capture. For a corner booth, protect the open sides first, place the highest-priority activity where it is visible from the aisle, and push storage or low-value functions away from the main approach. Review at least two layout options in 3D before approval.

What Is a Corner Exhibition Stall?

A corner exhibition stall is an inline-style booth at the end of a row with two adjacent open aisle sides. This configuration changes how visitors see the stand, where they naturally enter, and how much of the perimeter can be used for graphics, storage or displays.

A practical planning example is a 3m × 3m corner booth. The exact dimensions, permitted heights and wall treatments depend on the event. What does not change is the need to design around two-direction visibility, an open corner and a layout that works from both aisles rather than treating the stand as an empty rectangle.

Booth type labels are useful for planning, but the event manual is the final authority. Organisers may apply their own sightline, height, fire-safety and hanging-sign rules.

What Makes a Good Corner Booth Layout?

For a corner booth, a good layout creates a clear first move. It does not force visitors to guess which gap is the entrance or where a conversation is supposed to happen. The stand should make sense from both aisle directions and the diagonal corner view.

Instead of asking how much furniture fits, ask what the visitor should do in the first ten seconds. That answer usually removes half the unnecessary objects from the plan.

5 Practical Corner Booth Layout Patterns

1. Product-first layout

Keep the hero product or demonstration visible from the aisle, with staff positioned beside rather than in front of it. Use compact storage at the least valuable edge.

2. Conversation-first layout

Place a small reception cue near the approach, then create one clear meeting zone deeper in the stand. Avoid making seated guests form a visual wall.

3. Open-display layout

Use shallow displays and low furniture so the booth reads as accessible. This works well when visitors should browse rather than wait for a guided explanation.

4. Demo + lead-capture layout

Separate the stopping point for the demo from the place where details are collected. If both happen at the same counter, queues form quickly.

5. Minimal brand-led layout

Use one strong message, one display and only essential furniture. Compact booths often feel more premium when they are not trying to prove value through object count.

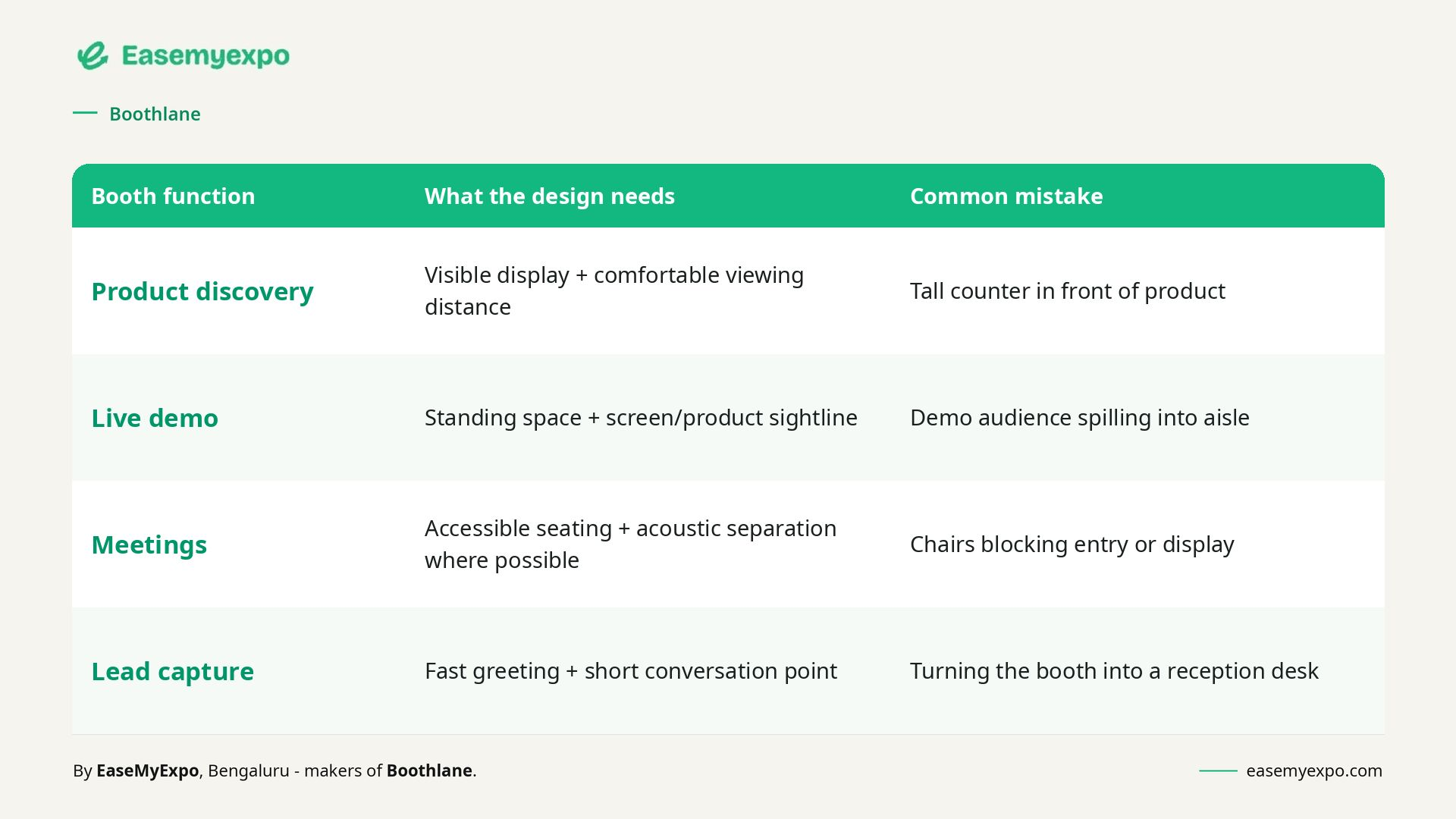

How to Choose Between the Layouts

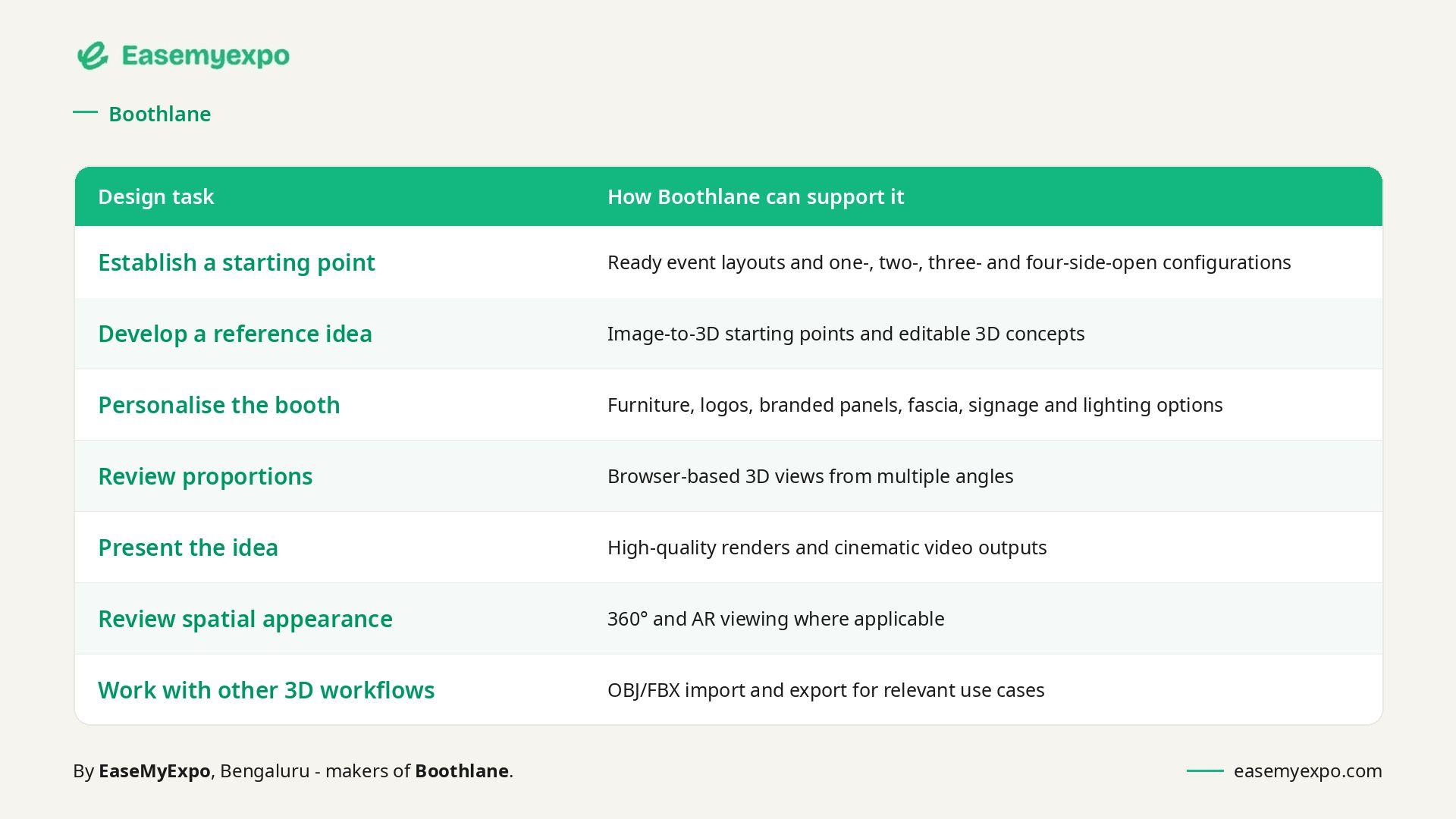

How Boothlane Helps With Corner Stall Design

The useful part is not the number of features. It is being able to make a specific decision visible: whether a counter blocks entry, whether branding reads from an aisle, whether a product has enough clearance, or whether a meeting area is in the wrong place.

Example: Reviewing a 3m × 3m corner Corner Stall

Imagine an exhibitor with a 3m × 3m corner corner booth, three products, two staff members, brochure storage and one short-conversation area. The first version looks clean when empty, but the review should focus on use rather than appearance.

• Can the main product be seen from both aisle directions and the diagonal corner view?
• Can two visitors stop without standing in the main entry or exit path?
• Can a staff member stand behind the counter without closing the opening?
• Can chairs pull out and storage open without hitting another object?
• Does the primary brand message remain visible when people are inside the booth?
• Is there a clear difference between what is visually approved and what still needs technical validation?

If the answer to one of these is no, change the layout while it is still a concept. That is faster than discovering the issue after graphics are printed or furniture is already on site.

Corner Stall Design Checklist

• Dimensions: Confirm frontage, depth, orientation and usable clear floor area.
• Open sides: Confirm the two adjacent open side(s) and the actual aisle approaches.
• Brand visibility: Check the main message at walking distance and approximate eye level.
• Counter position: Make sure staff can use it without becoming the entrance barrier.
• Product access: Leave room to approach, inspect or demonstrate the main product.
• Furniture: Review occupied chairs, stools and working clearances.
• Storage: Keep supplies concealed while allowing doors or drawers to open.
• Screens: Give viewers a place to stand inside the booth footprint.
• Lighting: Check product emphasis, shadows and screen glare.
• Visitor flow: Test entry, stopping, conversation and exit as separate movements.
• Render review: Approve more than one camera angle.
• Technical check: Compare the concept against the specific event manual and fabricator requirements.

Who Can Use Boothlane for Corner Stall Planning?

• Exhibitors reviewing products, furniture, branding and visitor comfort before sign-off.
• Exhibition agencies developing early concepts and showing clients alternative directions.
• Fabricators clarifying the intended appearance before discussing materials and construction.
• 3D designers exploring layouts and presentation directions alongside specialist tools.
• Freelancers presenting faster concept options during client reviews.
• Marketing and sales teams checking messages, product emphasis and on-stand usability.

External Reference: Booth Types and Show Rules

NAMM defines a corner booth as a linear booth at the end of a series of inline booths with exposure to intersecting aisles on two sides, with linear-booth rules generally still applying.

NAMM Booth Display Types & Regulations

Use this as an example of how organisers define booth categories and sightline rules, not as a universal construction standard. Always check the manual for the specific exhibition you are attending.

Frequently Asked Questions

1. What is a corner exhibition stall?

A corner exhibition stall is an inline-style booth at the end of a row with two adjacent open aisle sides. The configuration affects visitor approaches, branding surfaces and how furniture or activities should be positioned.

2. How do you design a corner exhibition booth?

Confirm the booked footprint and organiser rules first. Then protect the two adjacent open sides, place the main visitor activity, add the minimum furniture required, and review the design from realistic aisle angles before approval.

3. Can I design a corner exhibition stall online?

Yes. Browser-based tools such as Boothlane support early-stage 3D concept development, branding, furniture placement and presentation views without installing heavy desktop software.

4. Does a 3D concept replace a fabricator drawing?

No. A 3D concept helps teams agree on appearance, layout and presentation. Fabrication drawings, engineering, material specifications, venue approvals and installation planning remain separate technical work.

5. What should I check before approving a corner booth?

Check approach visibility, entry clearance, occupied furniture, product access, storage, screen viewing positions, lighting, graphics and the relationship between the concept and the event manual. For a corner stand, pay particular attention to treat both aisles as real entrances rather than one entrance plus one side opening.

6. Can Boothlane create renders for internal approval?

Yes. Boothlane supports presentation outputs such as high-quality renders and cinematic views, helping stakeholders review the same concept before it is taken forward for fabrication.

7. Can a reference image be used as a starting point?

Yes. A reference image can be useful for colour, form, materials or display treatment. It should be adapted to the real footprint and event constraints rather than copied as if every booth has the same dimensions and rules.

8. Who should review a corner booth concept?

At minimum, involve the person responsible for the brand message, someone who understands the product or demo requirement, and the fabricator or technical team responsible for feasibility. Sales teams can also spot usability issues that a pure visual review misses.

Corner Exhibition Stall Design Guide

Choose the Layout Before You Polish the Render

The strongest corner booth layout is usually the one that makes fewer things compete. Decide what the visitor should notice and do first, then give that activity enough space to work when the booth is busy.
