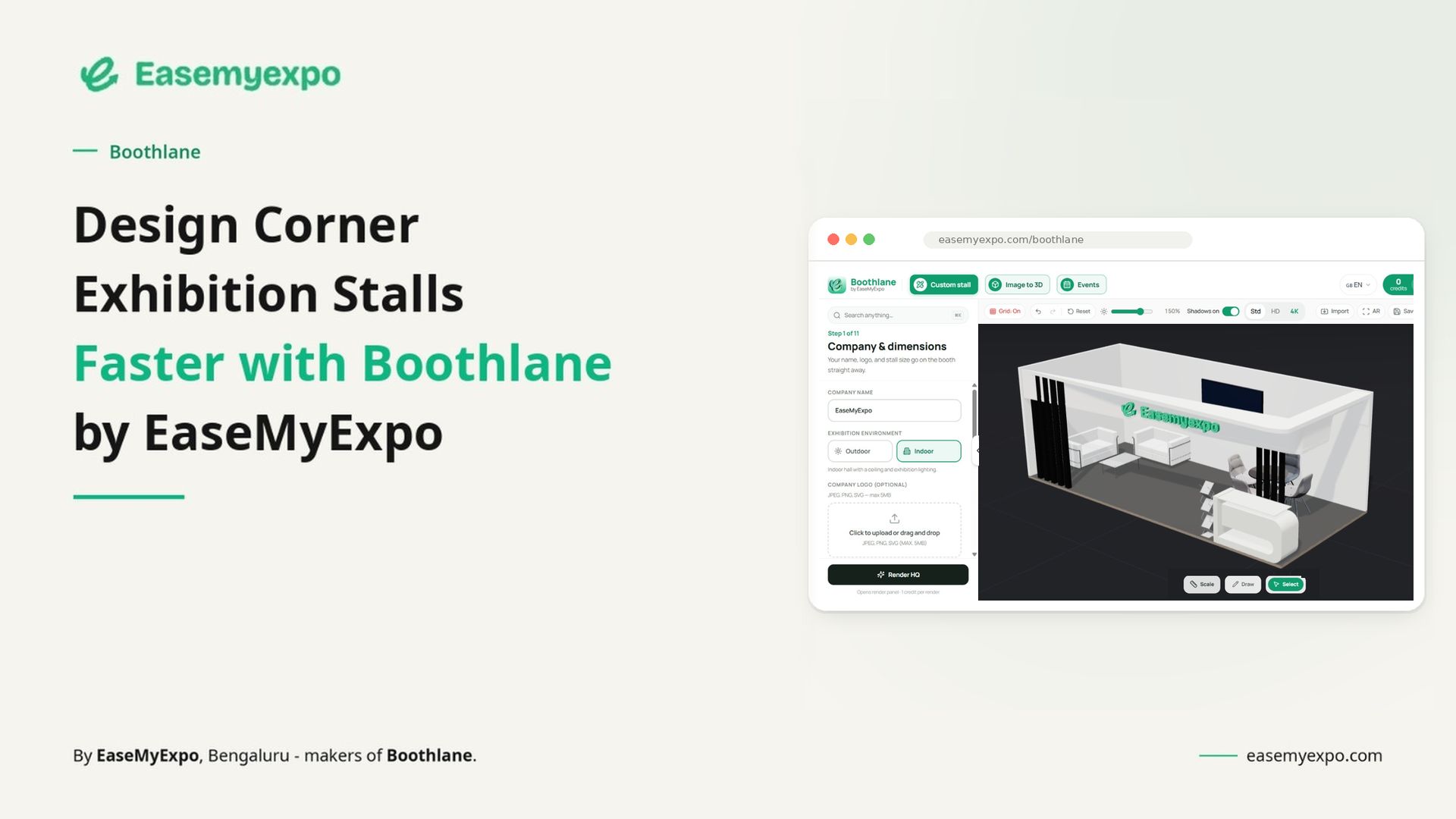

Design Corner Exhibition Stalls Faster with Boothlane by EaseMyExpo

A corner stall can look simple on a floor plan. The real challenge begins when visitors approach from two directions and the space has to support branding, products and conversations at the same time.

A corner exhibition stall is mainly about visibility and movement. With two adjacent open sides, the design needs clear sightlines, an open corner and a layout that works from both aisles.

Boothlane by EaseMyExpo lets exhibition teams create, edit and review 3D stall concepts in the browser before fabrication, helping teams make early layout decisions more clearly.

Quick Answer

How can you design a corner exhibition stall quickly?

Start with the confirmed booth size and two-side-open layout. Keep the corner open, place the main branding and visitor activity where they are visible from both aisles, and add only essential furniture. Review the layout in 3D before approval.

What Is a Corner Exhibition Stall?

A corner exhibition stall is a booth with two adjacent open aisle sides, usually positioned at the end of a row.

Because visitors can approach from two directions, the design should prioritise visibility, an open corner and clear movement between both aisle sides.

Exact dimensions, height limits and structural rules depend on the exhibition organiser.

Why Corner Exhibition Stalls Need Deliberate Planning

Corner stalls offer more visibility than inline booths, but both open sides need to work equally well. Designing one side as the main front can make the second side feel blocked or secondary.

The layout should support the main goal of the booth, whether that is product demos, meetings, lead generation or brand visibility.

How to Design a Corner Exhibition Stall in Minutes

1. Start with the confirmed footprint

Enter the booked width and depth rather than designing around an approximate size. Typical planning examples include 3m × 3m, 6m × 3m and similar row-end footprints, but your allocation is the number that matters. Account for wall and cabinet depth because nominal floor area is not the same as clear usable space.

2. Select the two adjacent-side-open configuration

Choose the configuration that matches the real booth. For a corner stand, treat both aisles as real entrances rather than one entrance plus one side opening. A layout that is correct in shape but wrong in orientation can create misleading approval renders.

3. Place the main visitor activity first

Give the most important action—demo, product inspection, lead capture or meeting—the clearest location before adding decorative furniture. This keeps the layout tied to business purpose rather than empty-space anxiety.

4. Add branding in a visual hierarchy

Lead with the company name or recognisable identity, then the core offer, then supporting proof or product detail. A visitor approaching at walking speed should not have to read five equal-weight messages to understand the booth.

5. Add furniture using real dimensions

Counters, chairs and display units look harmless in isolation. They become problems when doors need to open, people need to stand behind them, or visitors stop in front of them. Use realistic footprints and leave movement space around occupied furniture.

6. Review from aisle level

Check both aisle directions and the diagonal corner view. Look for hidden logos, dead edges, blocked entries and screens that pull viewers into circulation paths. A top-down plan is useful, but it cannot replace a human-eye view.

7. Create approval views with a question

Do not send five beautiful renders with no context. Ask a specific question with each view: Can a visitor see the product before entering? Can two people meet here without blocking the demo? Does the fascia identify the brand from the approach aisle?

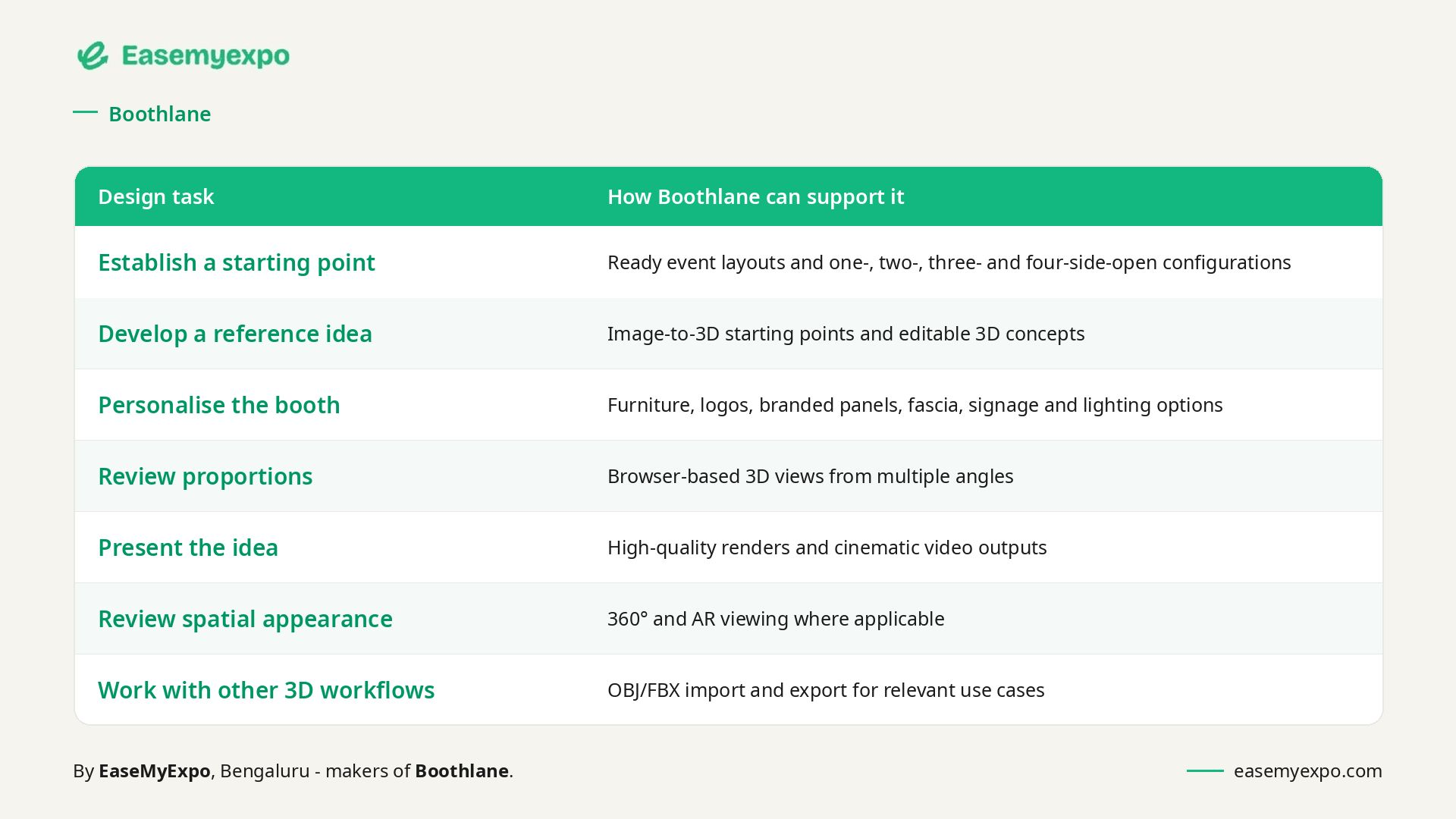

How Boothlane Helps With Corner Stall Design

The useful part is not the number of features. It is being able to make a specific decision visible: whether a counter blocks entry, whether branding reads from an aisle, whether a product has enough clearance, or whether a meeting area is in the wrong place.

Example: Reviewing a 3m × 3m corner Corner Stall

Imagine an exhibitor with a 3m × 3m corner booth, three products, two staff members, brochure storage and one short-conversation area. The first version looks clean when empty, but the review should focus on use rather than appearance.

• Can the main product be seen from both aisle directions and the diagonal corner view?
• Can two visitors stop without standing in the main entry or exit path?
• Can a staff member stand behind the counter without closing the opening?
• Can chairs pull out and storage open without hitting another object?
• Does the primary brand message remain visible when people are inside the booth?
• Is there a clear difference between what is visually approved and what still needs technical validation?

If the answer to one of these is no, change the layout while it is still a concept. That is faster than discovering the issue after graphics are printed or furniture is already on site.

Corner Stall Design Checklist

• Dimensions: Confirm frontage, depth, orientation and usable clear floor area.
• Open sides: Confirm the two adjacent open side(s) and the actual aisle approaches.
• Brand visibility: Check the main message at walking distance and approximate eye level.
• Counter position: Make sure staff can use it without becoming the entrance barrier.
• Product access: Leave room to approach, inspect or demonstrate the main product.
• Furniture: Review occupied chairs, stools and working clearances.
• Storage: Keep supplies concealed while allowing doors or drawers to open.
• Screens: Give viewers a place to stand inside the booth footprint.
• Lighting: Check product emphasis, shadows and screen glare.
• Visitor flow: Test entry, stopping, conversation and exit as separate movements.
• Render review: Approve more than one camera angle.
• Technical check: Compare the concept against the specific event manual and fabricator requirements.

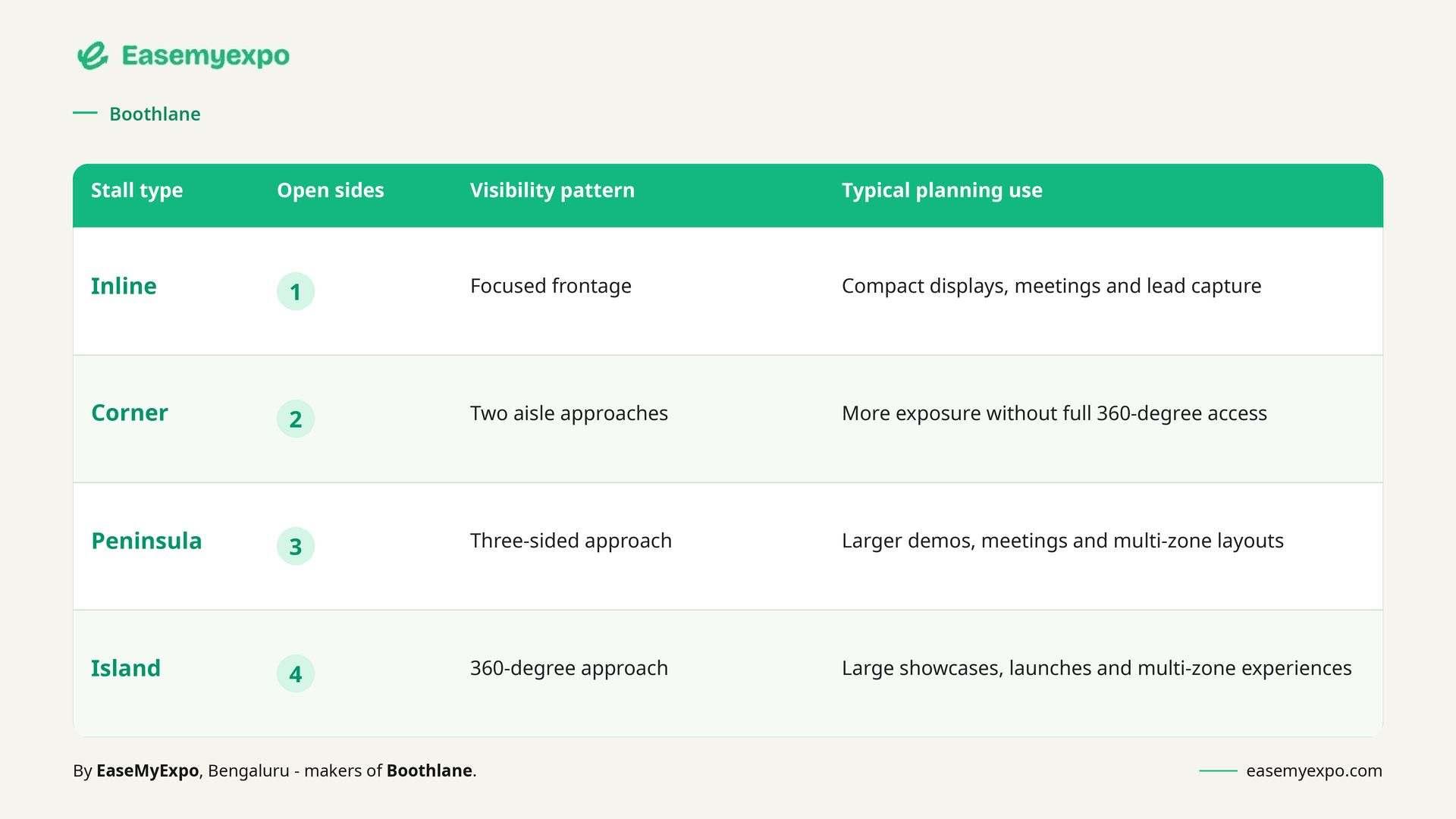

Corner Stall vs Other Common Booth Types

The goal is not to make a corner booth behave like another format. Its advantage comes from working with its own access pattern rather than fighting it.

Who Can Use Boothlane for Corner Stall Planning?

• Exhibitors reviewing products, furniture, branding and visitor comfort before sign-off.
• Exhibition agencies developing early concepts and showing clients alternative directions.
• Fabricators clarifying the intended appearance before discussing materials and construction.
• 3D designers exploring layouts and presentation directions alongside specialist tools.
• Freelancers presenting faster concept options during client reviews.
• Marketing and sales teams checking messages, product emphasis and on-stand usability.

External Reference: Booth Types and Show Rules

NAMM defines a corner booth as a linear booth at the end of a series of inline booths with exposure to intersecting aisles on two sides, with linear-booth rules generally still applying.

NAMM Booth Display Types & Regulations

Use this as an example of how organisers define booth categories and sightline rules, not as a universal construction standard. Always check the manual for the specific exhibition you are attending.

Frequently Asked Questions

1. What is a corner exhibition stall?

A corner exhibition stall is an inline-style booth at the end of a row with two adjacent open aisle sides. The configuration affects visitor approaches, branding surfaces and how furniture or activities should be positioned.

2. How do you design a corner exhibition booth?

Confirm the booked footprint and organiser rules first. Then protect the two adjacent open sides, place the main visitor activity, add the minimum furniture required, and review the design from realistic aisle angles before approval.

3. Can I design a corner exhibition stall online?

Yes. Browser-based tools such as Boothlane support early-stage 3D concept development, branding, furniture placement and presentation views without installing heavy desktop software.

4. Does a 3D concept replace a fabricator drawing?

No. A 3D concept helps teams agree on appearance, layout and presentation. Fabrication drawings, engineering, material specifications, venue approvals and installation planning remain separate technical work.

5. What should I check before approving a corner booth?

Check approach visibility, entry clearance, occupied furniture, product access, storage, screen viewing positions, lighting, graphics and the relationship between the concept and the event manual. For a corner stand, pay particular attention to treat both aisles as real entrances rather than one entrance plus one side opening.

6. Can Boothlane create renders for internal approval?

Yes. Boothlane supports presentation outputs such as high-quality renders and cinematic views, helping stakeholders review the same concept before it is taken forward for fabrication.

7. Can a reference image be used as a starting point?

Yes. A reference image can be useful for colour, form, materials or display treatment. It should be adapted to the real footprint and event constraints rather than copied as if every booth has the same dimensions and rules.

8. Who should review a corner booth concept?

At minimum, involve the person responsible for the brand message, someone who understands the product or demo requirement, and the fabricator or technical team responsible for feasibility. Sales teams can also spot usability issues that a pure visual review misses.

See Your Corner Stall Before It Is Built

Good corner exhibition stall design is not about filling the footprint. It is about making the right activity obvious, keeping movement comfortable and giving the brand a clear presence from the aisle.
