From Reference Image to Approved Island Booth: A 3D Design Workflow
A reference image is useful, but it is not a buildable answer. The useful question is: what exactly do you like about it, and how does that idea behave inside your booked footprint?
An island exhibition stall is mainly a visibility-and-movement problem. The footprint matters, but the more useful question is how a visitor experiences the stand from the aisle. In this format, 360-degree visibility, circulation, zoning and consistent branding from every approach decide whether the booth feels clear or confused.
Boothlane by EaseMyExpo lets exhibition teams create, edit and review 3D stall concepts in the browser. The aim is not to replace technical design or fabrication. It is to make early decisions visible enough that marketing, design and fabrication teams can discuss the same thing before the build starts.
Quick Answer
How do you turn a reference image into an island booth concept?
Use the reference for visual ideas, then rebuild it around the actual booth size and four-side-open layout. Keep useful elements such as colour, structure or display style, add real branding and furniture, then review the concept in 3D before fabrication.
What Is an Island Exhibition Stall?
An island exhibition stall is a freestanding booth with aisles on all four sides. Its design should support 360-degree visibility, clear circulation, defined zones and branding that works from every approach.
How Should a Reference Image Be Used for an Island Booth?
Use a reference image for style, not exact geometry.
It can guide:
- colour palette
- fascia or structure
- lighting
- display treatment
- material direction
Then adapt the idea to the real footprint, four open sides and event rules.
Why Shouldn’t You Copy the Reference Exactly?
The reference may have different dimensions, access points or organiser rules. Keep the visual idea, but rebuild the layout around the actual island stall so it works from all four sides.
Example Workflow: Reference Image to Island 3D Concept
1. Identify what you actually like
Is it the colour palette, the overhead form, the shelving, the lighting, the hospitality feel or the way products are grouped? Write that down before modelling.
2. Set real dimensions and orientation
Use the booked footprint and four-side-open configuration. Check which aisles are active and where neighbouring stands sit.
3. Create an editable starting point
Use an image-to-3D workflow or start from a suitable ready layout. Treat the result as something to edit, not something to approve untouched.
4. Remove what does not serve the brief
Reference images often contain furniture, walls or decorative forms that do not help your objective. Delete first; add later.
5. Add real brand content
Replace placeholder logos and screens with the actual message hierarchy, product visuals and brand colours. Review legibility at realistic scale.
6. Add products and furniture with dimensions
Use product sizes and working clearances, especially for doors, machines, stools and meeting chairs.
7. Review from aisle level
Check all four aisle sides and diagonal long-distance views. If one view is doing all the selling, the concept is not yet robust.
8. Create approval views and record the chosen version
Use a front/primary view plus supporting angles. Record what is approved and what still needs technical confirmation.
9. Hand the concept to the fabricator with context
Share dimensions, event manual, product measurements, preferred finishes and unresolved questions. The visual should reduce ambiguity, not hide it.

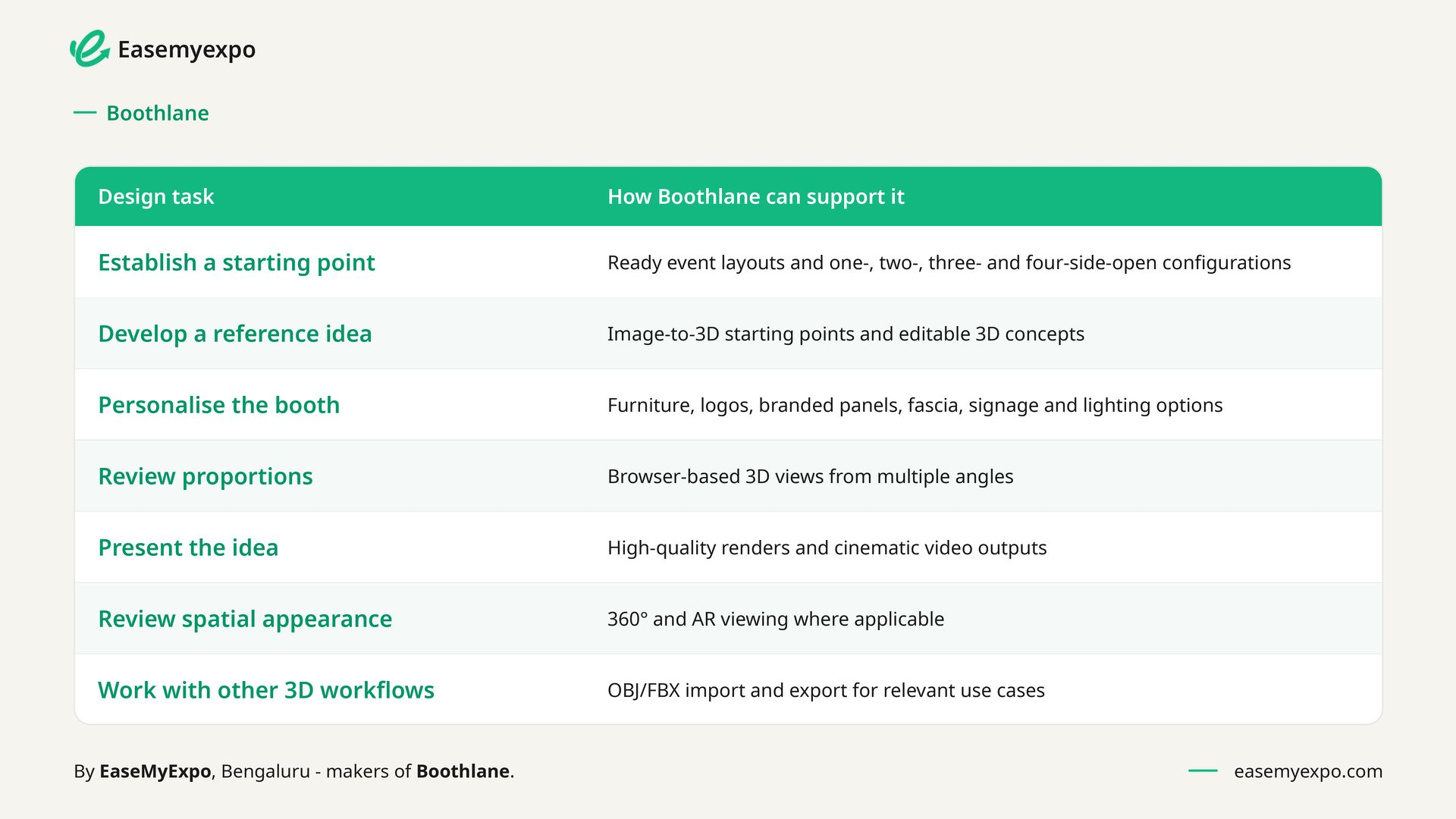

How Boothlane Helps With Island Stall Design
The useful part is not the number of features. It is being able to make a specific decision visible: whether a counter blocks entry, whether branding reads from an aisle, whether a product has enough clearance, or whether a meeting area is in the wrong place.
Example: Reviewing a 6m × 6m island Island Stall
Imagine an exhibitor with a 6m × 6m island booth, three products, two staff members, brochure storage and one short-conversation area. The first version looks clean when empty, but the review should focus on use rather than appearance.
- Can the main product be seen from all four aisle sides and diagonal long-distance views?
- Can two visitors stop without standing in the main entry or exit path?
- Can a staff member stand behind the counter without closing the opening?
- Can chairs pull out and storage open without hitting another object?
- Does the primary brand message remain visible when people are inside the booth?
- Is there a clear difference between what is visually approved and what still needs technical validation?
If the answer to one of these is no, change the layout while it is still a concept. That is faster than discovering the issue after graphics are printed or furniture is already on site.
Island Stall Design Checklist
- Dimensions: Confirm frontage, depth, orientation and usable clear floor area.
- Open sides: Confirm the four open side(s) and the actual aisle approaches.
- Brand visibility: Check the main message at walking distance and approximate eye level.
- Counter position: Make sure staff can use it without becoming the entrance barrier.
- Product access: Leave room to approach, inspect or demonstrate the main product.
- Furniture: Review occupied chairs, stools and working clearances.
- Storage: Keep supplies concealed while allowing doors or drawers to open.
- Screens: Give viewers a place to stand inside the booth footprint.
- Lighting: Check product emphasis, shadows and screen glare.
- Visitor flow: Test entry, stopping, conversation and exit as separate movements.
- Render review: Approve more than one camera angle.
- Technical check: Compare the concept against the specific event manual and fabricator requirements.
Who Can Use Boothlane for Island Stall Planning?
- Exhibitors reviewing products, furniture, branding and visitor comfort before sign-off.
- Exhibition agencies developing early concepts and showing clients alternative directions.
- Fabricators clarifying the intended appearance before discussing materials and construction.
- 3D designers exploring layouts and presentation directions alongside specialist tools.
- Freelancers present faster concept options during client reviews.
- Marketing and sales teams checking messages, product emphasis and on-stand usability.
External Reference: Booth Types and Show Rules
NAMM defines an island booth as a booth exposed to aisles on all four sides. Its event-specific rules also show that height, hanging signs and multi-story elements may require approvals, so the organiser manual must govern the final build.
NAMM Booth Display Types & Regulations
Use this as an example of how organisers define booth categories and sightline rules, not as a universal construction standard. Always check the manual for the specific exhibition you are attending.
Frequently Asked Questions
1. What is an island exhibition stall?
An island exhibition stall is a freestanding exhibition booth exposed to aisles on all four sides. The configuration affects visitor approaches, branding surfaces and how furniture or activities should be positioned.
2. How do you design an island exhibition booth?
Confirm the booked footprint and organiser rules first. Then protect the four open sides, place the main visitor activity, add the minimum furniture required, and review the design from realistic aisle angles before approval.
3. Can I design an island exhibition stall online?
Yes. Browser-based tools such as Boothlane support early-stage 3D concept development, branding, furniture placement and presentation views without installing heavy desktop software.
4. Does a 3D concept replace a fabricator drawing?
No. A 3D concept helps teams agree on appearance, layout and presentation. Fabrication drawings, engineering, material specifications, venue approvals and installation planning remain separate technical work.
5. What should I check before approving an island booth?
Check approach visibility, entry clearance, occupied furniture, product access, storage, screen viewing positions, lighting, graphics and the relationship between the concept and the event manual. For an island stand, pay particular attention to design the centre and perimeter together so every aisle gets a reason to enter.
6. Can Boothlane create renders for internal approval?
Yes. Boothlane supports presentation outputs such as high-quality renders and cinematic views, helping stakeholders review the same concept before it is taken forward for fabrication.
7. Can a reference image be used as a starting point?
Yes. A reference image can be useful for colour, form, materials or display treatment. It should be adapted to the real footprint and event constraints rather than copied as if every booth has the same dimensions and rules.
8. Who should review an island booth concept?
At minimum, involve the person responsible for the brand message, someone who understands the product or demo requirement, and the fabricator or technical team responsible for feasibility. Sales teams can also spot usability issues that a pure visual review misses.
Related: How to Plan Visitor Flow, Product Demos and Meetings in an Island Stall
Turn the Reference Into a Decision, Not Another Moodboard
A useful 3D workflow turns a vague reference into something specific enough to discuss: dimensions, access, branding, furniture, product position and presentation. That clarity makes the next conversation with the fabricator much better.
